Custom EMI Filters & RFI Filters
-

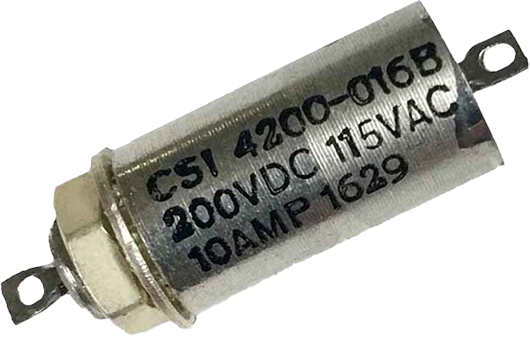

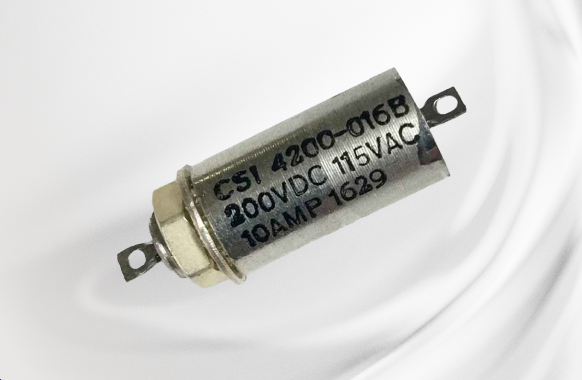

Solder Mount Filter
Also known as an Eyelet Filter. This EMI/RFI filters are hermetically sealed on one side and has a very low installation cost. They come is a wide variety of sizes with varying electrical characteristics.
-
D-Sub Filter Connector
This has several application including; power supplies, avionics, or telecommunications. It has an effective filtering range of 100KHz to 10GHz and an operating temperature range of -40°C to +80°C. Several different sizes are available.
-

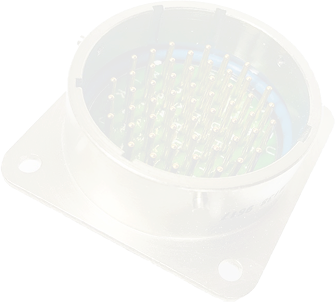

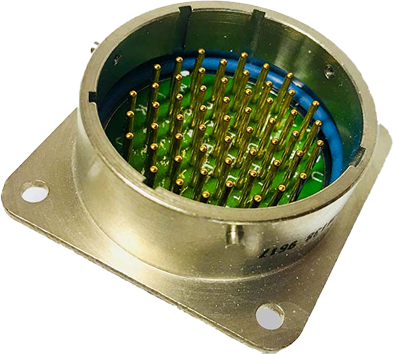

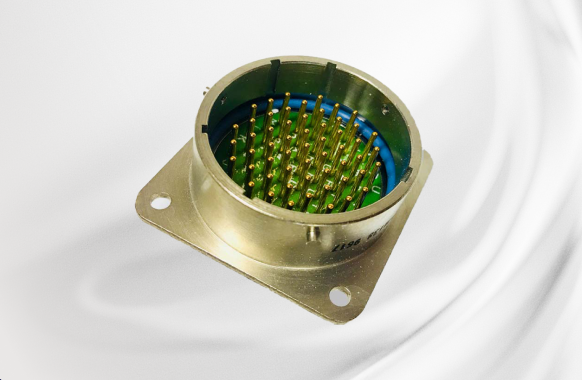

Filtered Connector
This cylindrical filter connector has a versatility of mounting either directly behind the connector or on the inside of the enclosure. This one has voltage rating of 600VDC and a current rating of 5 amps. It's capacitance is 830pf. Several different sizes are available.
-

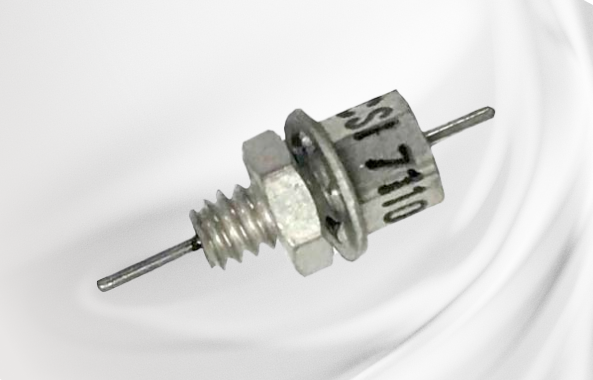

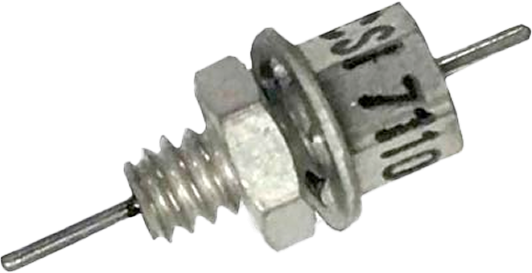

Miniature Ceramic Feed-thru Filters
This type of miniature feed thru filter is often referred to as a bolt style filter. It is easy to install and comes in numerous sizes with capacitance up to 5,000µf, depending upon the size.
