4100
Specifications
Working Voltage
100
Max DCR (Ω)
0.05
Rated A
10
Capacitance (uf)

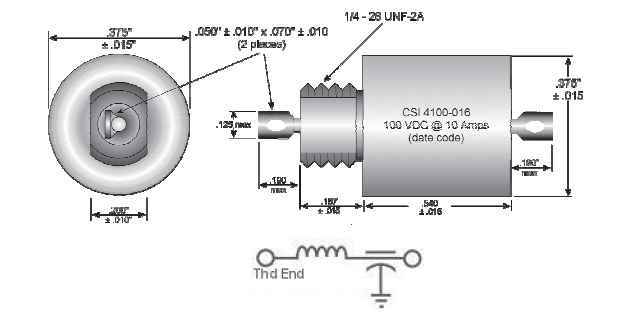

L Section Filter
Features
- Hermetically-sealed QLP-style filters in L-section configuration
- Suited for 400 Hz AC applications
- EMP Suppression options (upon request)
- “Q” Level quality screening (option Q)
- Thermal Shock Tested (MIL-STD-202, Method 107D, Condition A)
| Variant | Working Voltage | Rated A | Max Insertion Loss (dB) | Max DCR (Ω) | Type |
|---|---|---|---|---|---|
| 4100-010 | 0 | 0.1 | 70 | 10 | L Section Filter |
| 4100-011 | 0 | 0.25 | 70 | 4 | L Section Filter |
| 4100-012 | 0 | 0.5 | 70 | 1 | L Section Filter |
| 4100-013 | 0 | 1 | 70 | 0.25 | L Section Filter |
| 4100-014 | 0 | 2 | 70 | 0.063 | L Section Filter |
| 4100-015 | 0 | 3 | 70 | 0.027 | L Section Filter |
| 4100-016 | 0 | 10 | 70 | 0.003 | L Section Filter |
| 4100-020 | 0 | 0.1 | 70 | 10 | L Section Filter |
| 4100-021 | 0 | 0.25 | 70 | 4 | L Section Filter |
| 4100-022 | 0 | 0.5 | 70 | 1 | L Section Filter |
| 4100-023 | 0 | 1 | 70 | 0.25 | L Section Filter |
| 4100-024 | 0 | 2 | 70 | 0.063 | L Section Filter |
| 4100-025 | 0 | 3 | 70 | 0.027 | L Section Filter |
| 4100-026 | 0 | 10 | 70 | 0.003 | L Section Filter |
