6210

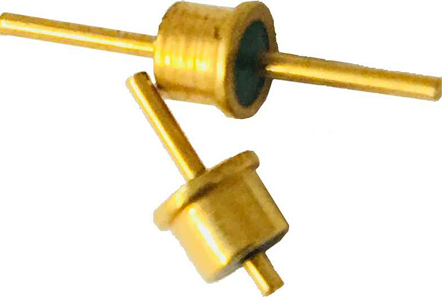

Feed-Thru Capacitors
Specifications
Working Voltage
100
Rated A
5
Capacitance (uf)
0.005 ~ 5.000
Features
- Hermetically-sealed QLP-style filters in L-section configuration
- Suited for 400 Hz AC applications
- EMP Suppression options (upon request)
- “Q” Level quality screening (option Q)
- Thermal Shock Tested (MIL-STD-202, Method 107D, Condition A)
| Variant | Working Voltage | Rated A | Capacitance (pf) |
|---|---|---|---|
| 6200-0005 | 0 | 5 | 5 |
| 6200-0030 | 0 | 5 | 30 |
| 6200-0100 | 0 | 5 | 100 |
| 6200-0120 | 0 | 5 | 120 |
| 6200-0220 | 0 | 5 | 220 |
| 6200-0270 | 0 | 5 | 270 |
| 6200-0390 | 0 | 5 | 390 |
| 6200-0500 | 0 | 5 | 500 |
| 6200-1000 | 0 | 5 | 1000 |
| 6200-1500 | 0 | 5 | 1500 |
| 6200-2200 | 0 | 5 | 2200 |
| 6210-0005 | 0 | 5 | 0.005 |
| 6210-0030 | 0 | 5 | 0.03 |
| 6210-0100 | 0 | 5 | 0.1 |
| 6210-0120 | 0 | 5 | 120 |
| 6210-0220 | 0 | 5 | 220 |
| 6210-0270 | 0 | 5 | 270 |
| 6210-0390 | 0 | 5 | 390 |
| 6210-0500 | 0 | 5 | 0.5 |
| 6210-1000 | 0 | 5 | 1 |
| 6210-1200 | 0 | 5 | 1.2 |
| 6210-2200 | 0 | 5 | 2.2 |
| 6210-2700 | 0 | 5 | 2.7 |
| 6210-3900 | 0 | 5 | 3.9 |
| 6210-5000 | 0 | 5 | 5 |
| 6220-0005 | 0 | 5 | 5 |
| 6220-0030 | 0 | 5 | 30 |
| 6220-0100 | 0 | 5 | 100 |
| 6220-0120 | 0 | 5 | 120 |
| 6220-0220 | 0 | 5 | 220 |
| 6220-0270 | 0 | 5 | 270 |
| 6220-0500 | 0 | 5 | 500 |
| 6230-0005 | 0 | 5 | 5 |
| 6230-0030 | 0 | 5 | 30 |
| 6230-0100 | 0 | 5 | 100 |
| 6230-0120 | 0 | 5 | 120 |
| 6230-0220 | 0 | 5 | 220 |
| 6230-0500 | 0 | 5 | 500 |
| 6240-0005 | 0 | 5 | 5 |
| 6240-0030 | 0 | 5 | 30 |
| 6240-0100 | 0 | 5 | 100 |
| 6240-0120 | 0 | 5 | 120 |
| 6240-0500 | 0 | 5 | 500 |
