4000
Specifications
Working Voltage
50
Rated A
0.10 ~ 10
Capacitance (uf)
-
Features

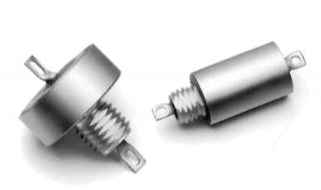

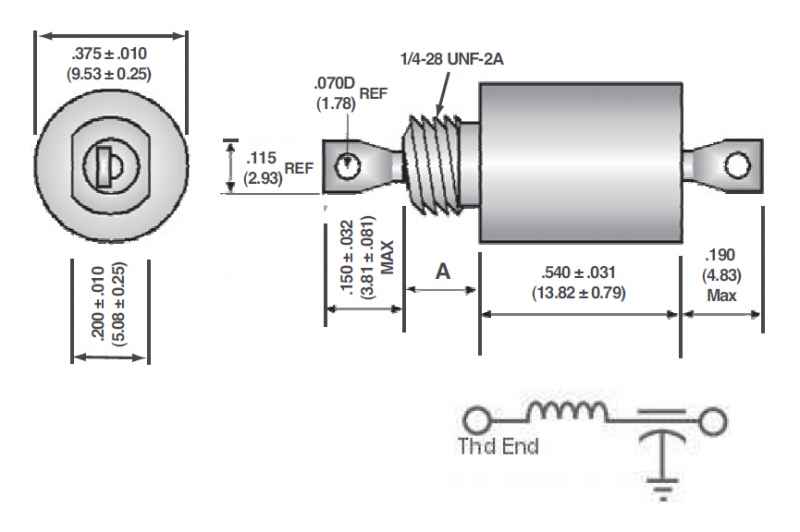

- Hermetically-sealed QLP-style filters in L-section configuration
- Suited for 400 Hz AC applications
- EMP Suppression options (upon request)
- Thermal Shock Tested (MIL-STD-202, Method 107D, Condition A)
- “Q” Level quality screening (option Q)
| Variant | Working Voltage | Rated A | Capacitance (pf) |
|---|---|---|---|
| 4000-010 | 50 | 0.1 | - |
| 4000-011 | 50 | 0.25 | - |
| 4000-012 | 50 | 0.5 | - |
| 4000-013 | 50 | 1 | - |
| 4000-014 | 50 | 2 | - |
| 4000-015 | 50 | 3 | - |
| 4000-016 | 50 | 10 | - |
| 4000-020 | 50 | 0.1 | - |
| 4000-021 | 50 | 0.25 | - |
| 4000-022 | 50 | 0.5 | - |
| 4000-023 | 50 | 1 | - |
| 4000-024 | 50 | 2 | - |
| 4000-025 | 50 | 3 | - |
| 4000-026 | 50 | 10 | - |
